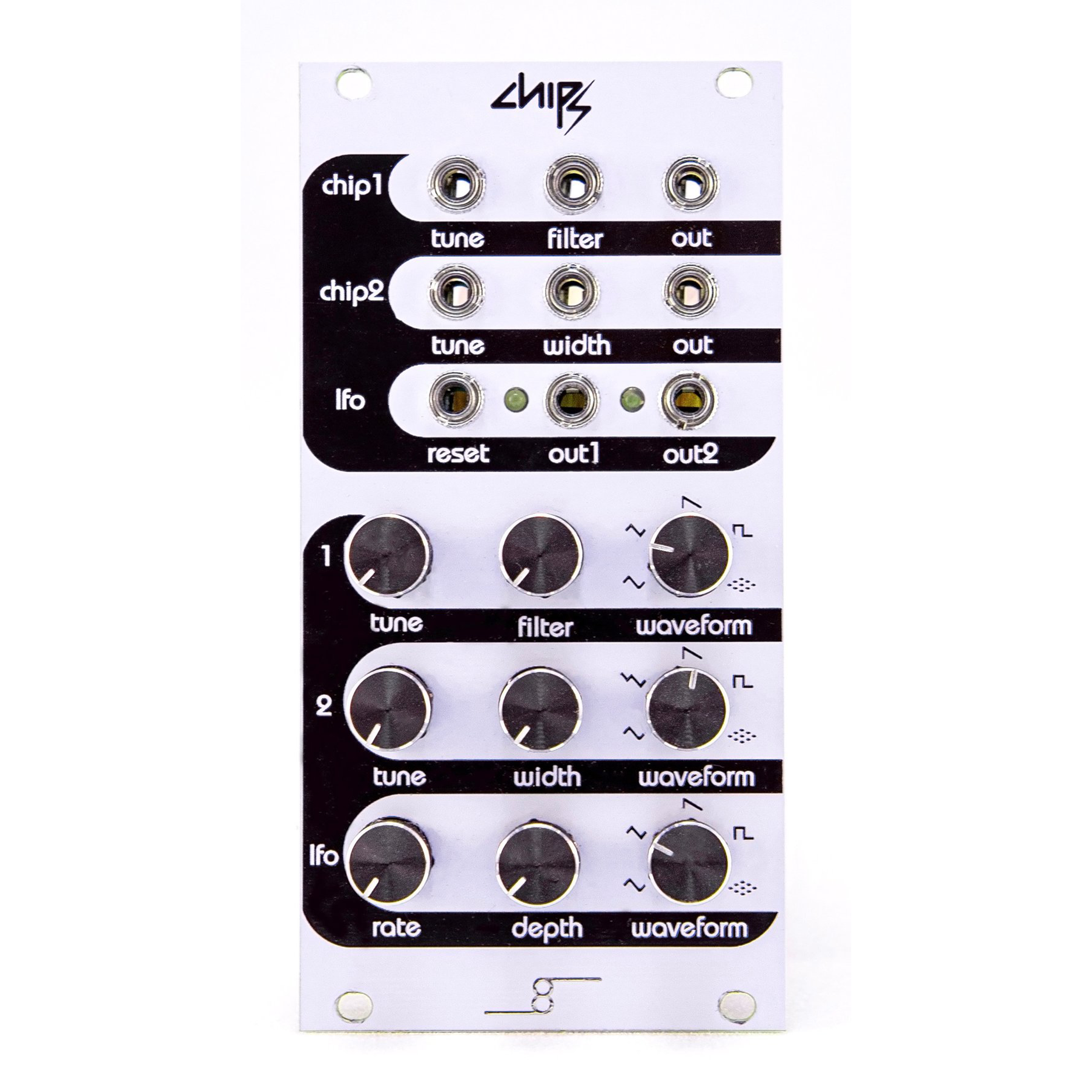

Cre8audio Chipz Dual VCO & LFO Eurorack Module




    Get Classic Synth Sounds With The Cre8audio Chipz Dual VCO & LFO Eurorack Module

    Old people will remember the sound of their Commodore, Atari, and NES systems. Cre8audio started with the idea that Chipz would be a 3 oscillator synth that takes you to an alternate universe in which your old console isn't for playing video games but is a module in your eurorack compatible system. As they were developing the ultimate chiptune module, their manufacturer’s sourcing department convinced them to do otherwise. So instead of actually making the chiptune module, we just kept the name Chipz and made something all together different with 3 oscillators, well not really.

    Our marketing guy (who disapproves of calling you old) wants us to say a whole bunch of other stuff here to make you feel nostalgic, but we're afraid of being sued (and we don’t much care for our marketing person, so were not going to do anything they suggest).

    Specifications

    • Width = 12hp
    • Depth = 30mm
    • Waveforms:
    • chip1 - sine, triangle, saw, square, noise
    • chip2 - sine, triangle, saw, square, noise
    • LFO - sine, triangle, saw, square, noise
    • 35mA power draw when running +12V rail
    • 30mA power draw when running +5V rail
    • 19mA power draw when running -12V
    • 0-5V voltage range LFO output 1
    • 0-5.8V voltage range LFO output 2
    • Frequency range of oscillators:
    • chip1 - out   91 ~ 1.47K
    • chip2 - out   91 ~ 1.47K
    • lfo - out1      75.75m  ~ 2
    • lfo - out2      370m  ~ 10
    • Input voltage range of oscillators = 0-10V
    • Minimum voltage required to set LFO trigger input high = 0.7 ~ 5V
