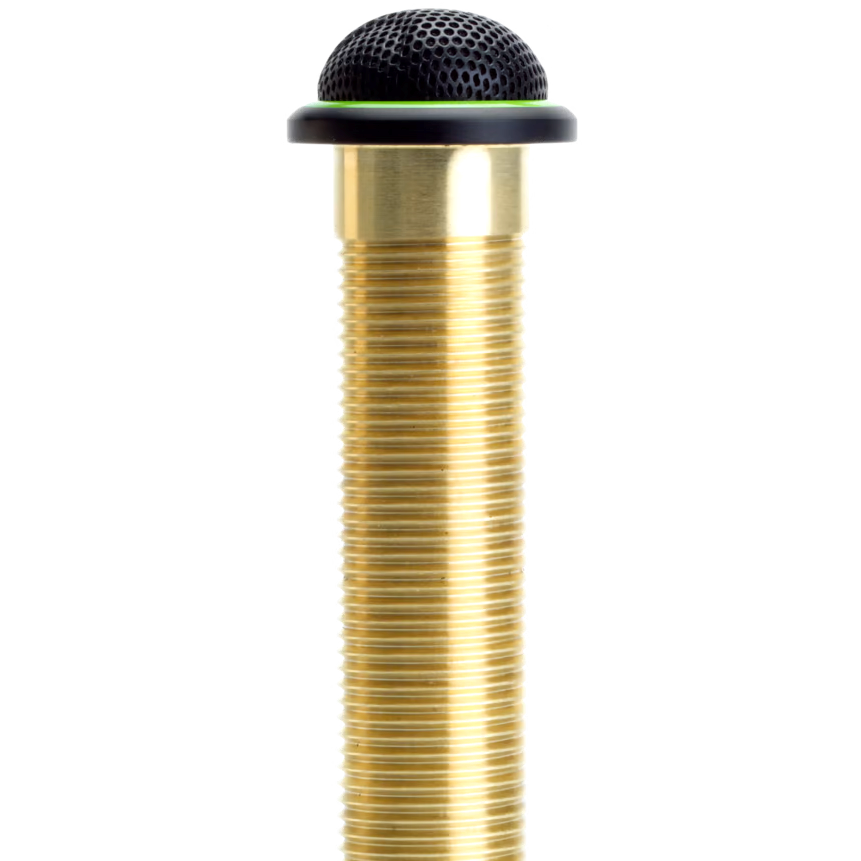

Shure MX395B/C Condenser Mic

    The Shure Microflex™ Low Profile Boundary microphone is an ideal table microphone when minimal presence is of high priority. Perfect for meeting rooms, these microphones deliver exceptional sound pickup while barely being noticed.

    SHURE MX395B/C Mic Specs:

    Output Impedance
    EIA Rated at 150 Ohms (170 Ohms actual)

    Output Configuration
    Active balanced

    Sensitivity (at 1 kHz , open circuit voltage)
    Cardioid: -35 dBV/Pa (18 mV)
    Omnidirectional: -28 dBV/Pa (42 mV)
    Bidirectional: -37 dBV/Pa (14 mV)
    1 Pascal=94 dB SPL

    Maximum SPL (1 kHz at 1% THD, 1 kilohms load)
    Cardioid: 121 dB
    Omnidirectional: 114 dB
    Bidirectional: 123 dB
    Equivalent output Noise (A-weighted)

    Cardioid: 28 dB SPL
    Omnidirectional: 21 dB SPL
    Bidirectional: 29 dB SPL

    Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz)
    Cardioid: 66 dB
    Omnidirectional: 73 dB
    Bidirectional: 65 dB

    Dynamic Range (1 kilohm load at 1 kHz)
    Cardioid: 93 dB
    Omnidirectional: 93 dB
    Bidirectional: 94 dB

    Common Mode Rejection (10 Hz - 100 kHz)
    45 dB minimum

    Preamplifier output Clipping level (1% THD)
    -8 dBV (0.4 V)

    Polarity
    3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector.
    5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector.

    Weight
    Net: 0.136 kg (0.30 lbs.)
    Packaged: 0.374 kg (0.825 lbs.)

    Logic Connections
    LED IN: Active low ( 1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V.

    Environmental Conditions
    Operating Temperature: -18 to 57 deg. C (0 to 135 deg. F)
    Storage Temperature: -29 to 74 deg. C (-20 to 165 deg. F)
    Relative Humidity: 0 to 95%

    Power Requirements
    MX395: 11 - 52 Vdc phantom, 2.0 mA
    MX395-LED: 48 - 52 Vdc phantom, 8.0 mA
