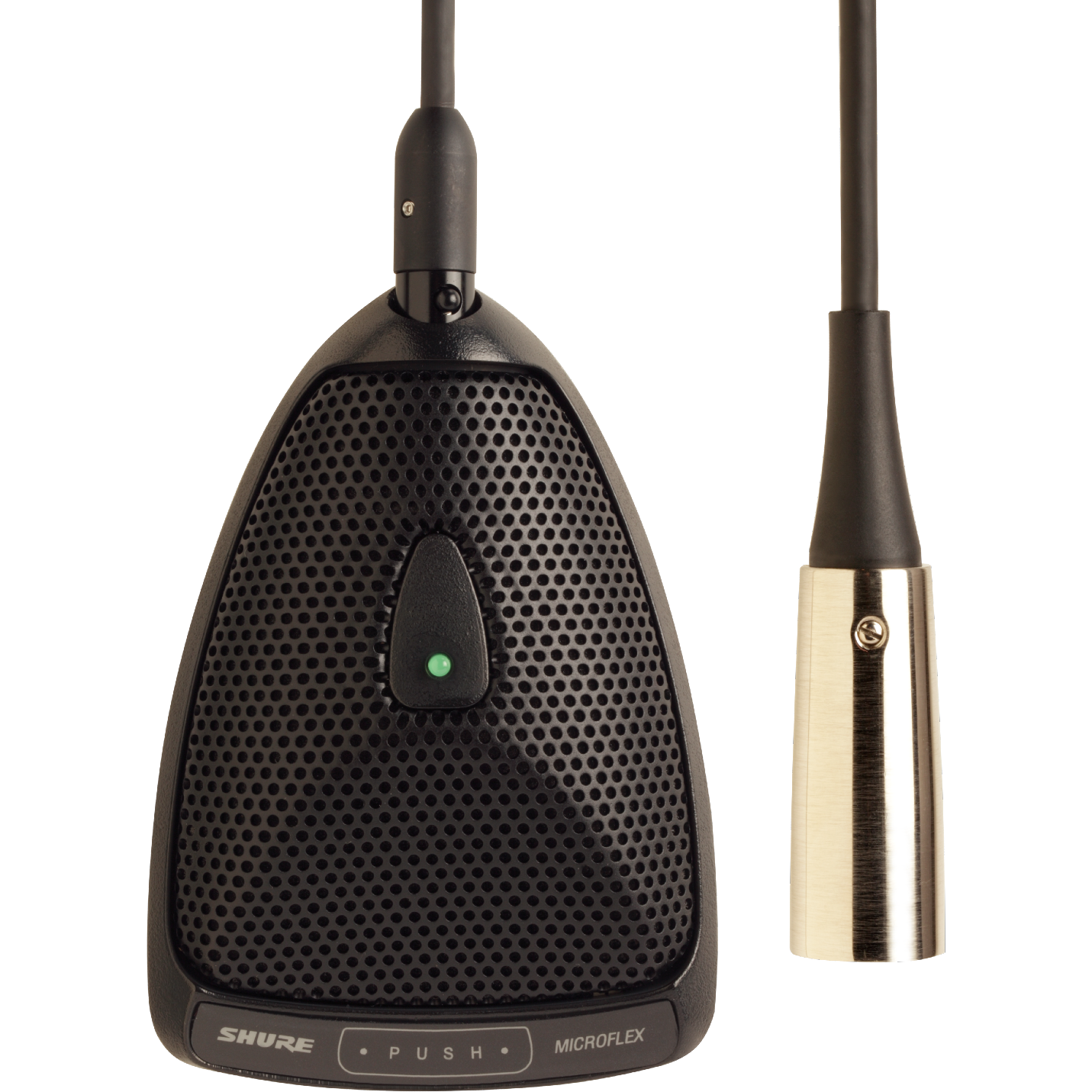

The Shure MX393 Microflex Wired Boundary Microphone from Shure is equipped with a programmable, silent membrane switch and green LED indicator. It is a high-quality solution for a range of applications such as altars, boardrooms and distance learning centers. Includes miniature three pin connector and 12' XLR cable.
All measurements taken with microphone mounted on a wooden surface 76.2 cm x 76.2 cm (30 in. x 30 in.).
Shure MX393 Microflex Boundary Microphone Specs:
50 to 17,000 Hz
EIA Rated at 150 ohms (180 ohms actual)
Sensitivity (at 1 kHz, open circuit voltage)
Cardioid Cartridge: -27.5 dBV/Pa (42.2 mV)
1 Pascal=94 dB SPL
Maximum Sound Pressure Level (1 kHz at 1% Total Harmonic Distortion, 1 k ohm load)
Cardioid: 117.0 dB
Signal to Noise Ratio (referenced at 94 dB SPL)
Cardioid: 71.0 dB
Equivalent Output Noise (A-weighted)
Cardioid: 23.0 dB SPL
Common Mode Rejection
45 dB minimum, 10 Hz to 100 kHz
50 dB minimum
Preamplifier Output Clipping Level
-6 dBV (0.5 V)
Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output connector.
11 to 52 Vdc phantom
2.0 mA current consumption
Operating Temperature Range: -18 to 57 degrees C (0 to 135 degrees F)
Relative Humidity: 0 to 95%
