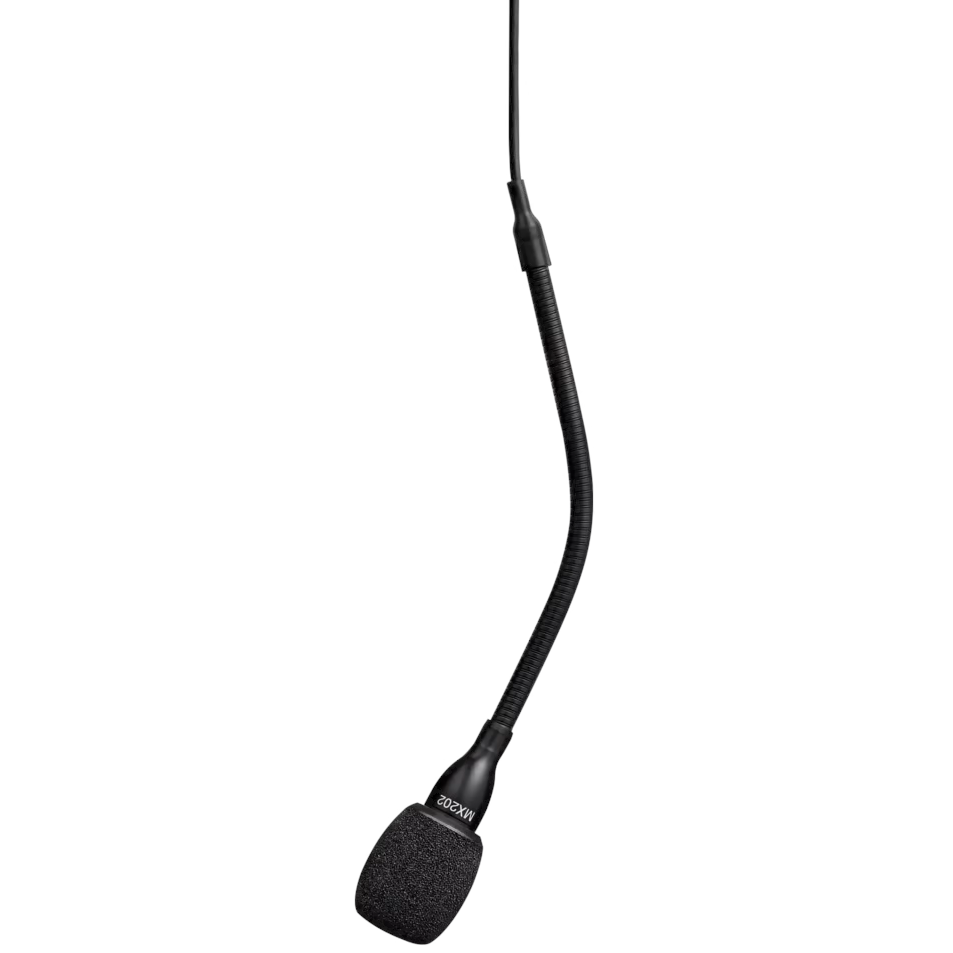

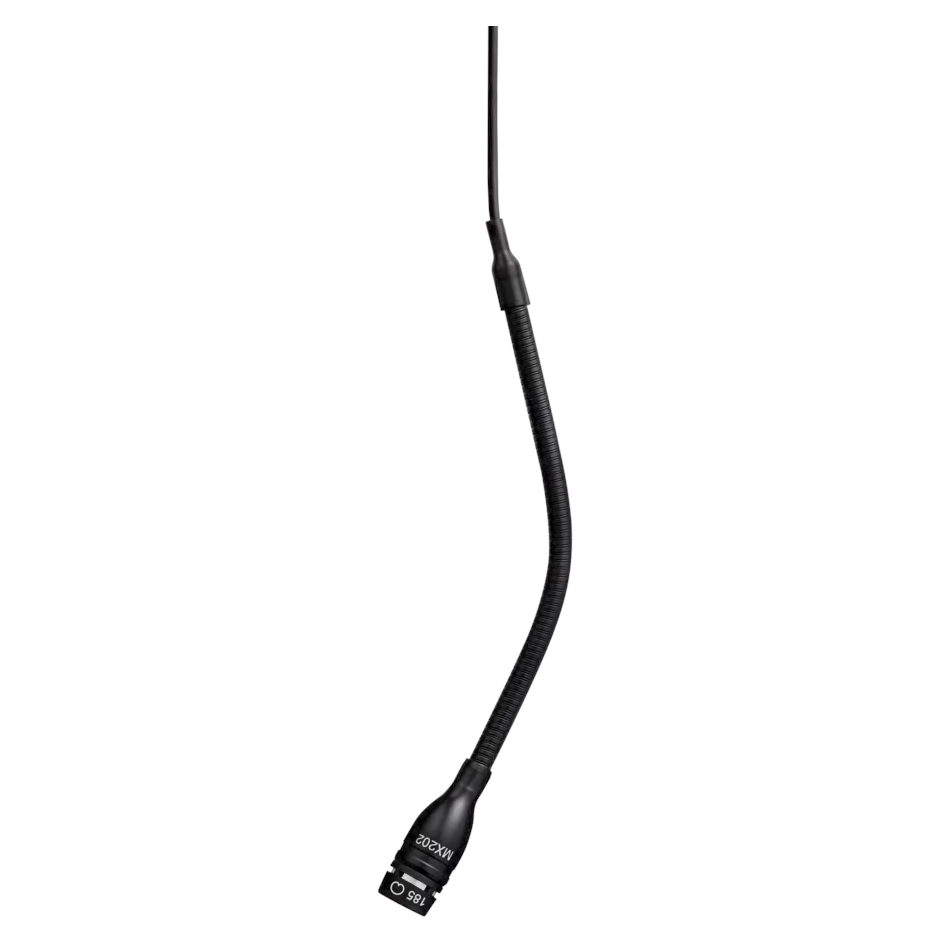

Shure MX202B/S Condenser Microflex Overhead Condenser Microphone (Supercardioid)

    Shure MX202 Microflex™ Overhead condenser microphones capture high-quality sound in a compact, adjustable package. Each model features a choice of interchangeable cardioid or supercardioid condenser microphone cartridges attached to a flexible, four inch gooseneck with a 30 foot cable.

    Shure MX202 Microflex™ Microphone Features

    Frequency Response
    50 to 17,000 Hz

    Output Impedance
    180 ohms actual (EIA rated at 150 ohms)

    Sensitivity (At 1,000 Hz, open circuit voltage*)
    Supercardioid: -33.5 dBV/Pa (21.1 mV)
    All values -12 dB at 0 gain; *1 Pascal = 94 dB SPL

    Maximum SPL (1 kHz at 1% THD, 1 k ohm load)
    Supercardioid: 122.7 dB
    All values +6 dB at 0 gain

    Equivalent Output Noise (A-weighted)
    Supercardioid: 26.5 dB SPL

    Signal to Noise Ratio (referenced at 94 dB SPL)
    Supercardioid: 67.5 dB

    Dynamic Range at 1 k ohm load
    96.2 dB
    100 dB at 0 gain

    Common Mode Rejection
    45.0 dB minimum

    Preamplifier Output Clipping Level (1% THD)
    -6.0 dBV (0.5 V)
    -12 dBV at 0 gain

    Polarity
    Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output connector.

    Power Requirements
    11 to 52 Vdc phantom, 2.0 mA

    Environmental Requirements
    Operating Temperature Range: -18 to 57 degrees C (0 to 135 degrees F)
    Relative Humidity: 0 to 95%
