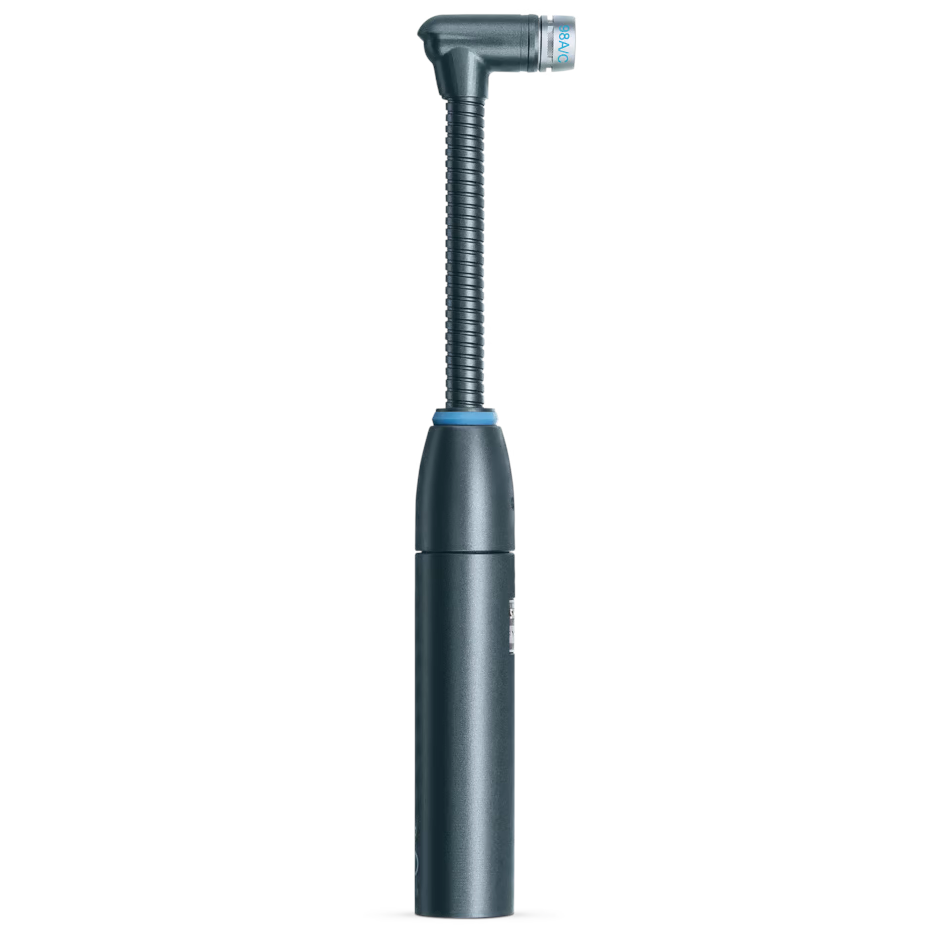

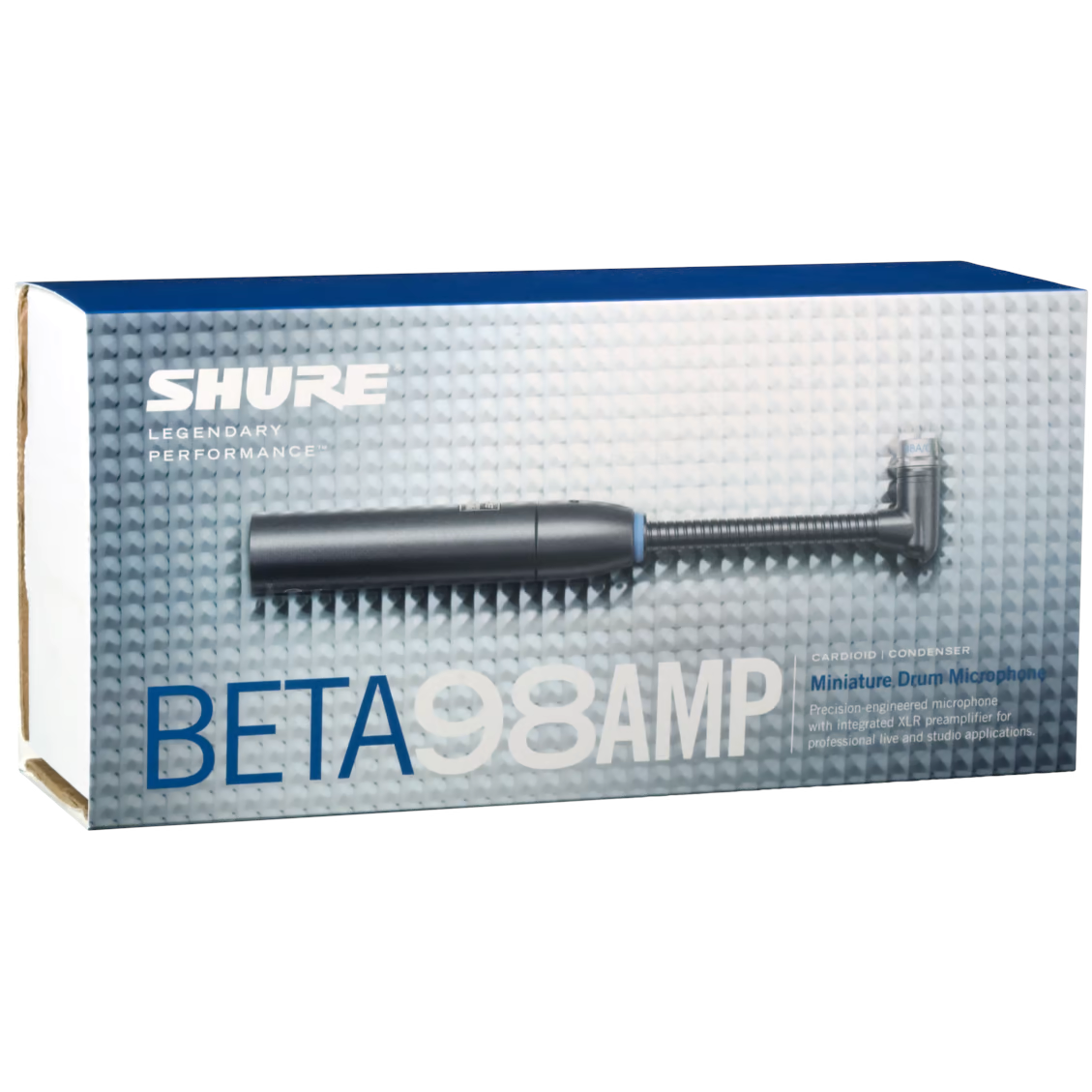

Shure BETA 98AMP/C Miniature Cardioid Drum / Instrument Microphone

    The Shure Beta 98AMP Mic is a precision-engineered miniature cardioid condenser microphone for professional sound reinforcement and studio recording. Features an integrated XLR preamplifier with a flexible gooseneck and the A75M Universal Microphone Mount for accurate placement in any configuration of toms, snares, or percussion. An extremely uniform cardioid polar pattern provides excellent gain-before-feedback, off-axis rejection of unwanted noise, and high maximum sound pressure level (SPL).

    Shure Beta 98AMP Microphone Specs

    Cartridge Type
    Electret Condenser

    Polar Pattern

    Frequency Response
    20 to 20,000 Hz

    Output Impedance

    open circuit voltage, @ 1 kHz, typical ™ 50.5 dBV/Pa[1] (2.5 mV)

    Maximum SPL
    1 kHz at 1% THD[2]
    2500 load: 157.5 dB SPL
    1000 load: 153 dB SPL

    Signal-to-Noise Ratio[3]
    63 dB

    Dynamic Range@ 1 kHz
    2500 load: 126.5 dB
    1000 load: 122 dB

    Clipping Level@ 1 kHz, 1% THD
    2500 load: 12.5 dBV
    1000 load: 7.5 dBV

    Self Noise equivalent SPL, A-weighted, typical
    31.0 dB SPL-A

    Common Mode Rejection
    10 to 100,000 kHz
    60 dB

    Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

    Power Requirements
    11™ 52 V DC[4] phantom power (IEC-61938), 5.5 mA

    Net Weight
    130 g (4.6 oz.)

    [1] 1 Pa=94 dB SPL
    [2] THD of microphone preamplifier when applied input signal level is equivalent to cartridge output at specified SPL
    [3] S/N ratio is the difference between 94 dB SPL and equivalent SPL of self noise, A-weighted
    [4] All specifications measured with a 48 Vdc phantom power supply. The microphone operates at lower voltages, but with slightly decreased headroom and sensitivity.
