Shure Beta 98AD/C Miniature Cardioid Condenser Drum Microphone

    The Shure Beta 98AD/C is a precision-engineered compact, high-output miniature condenser microphone for professional sound reinforcement and studio recording. An extremely uniform cardioid polar pattern provides excellent gain-before-feedback and off-axis rejection of unwanted noise.

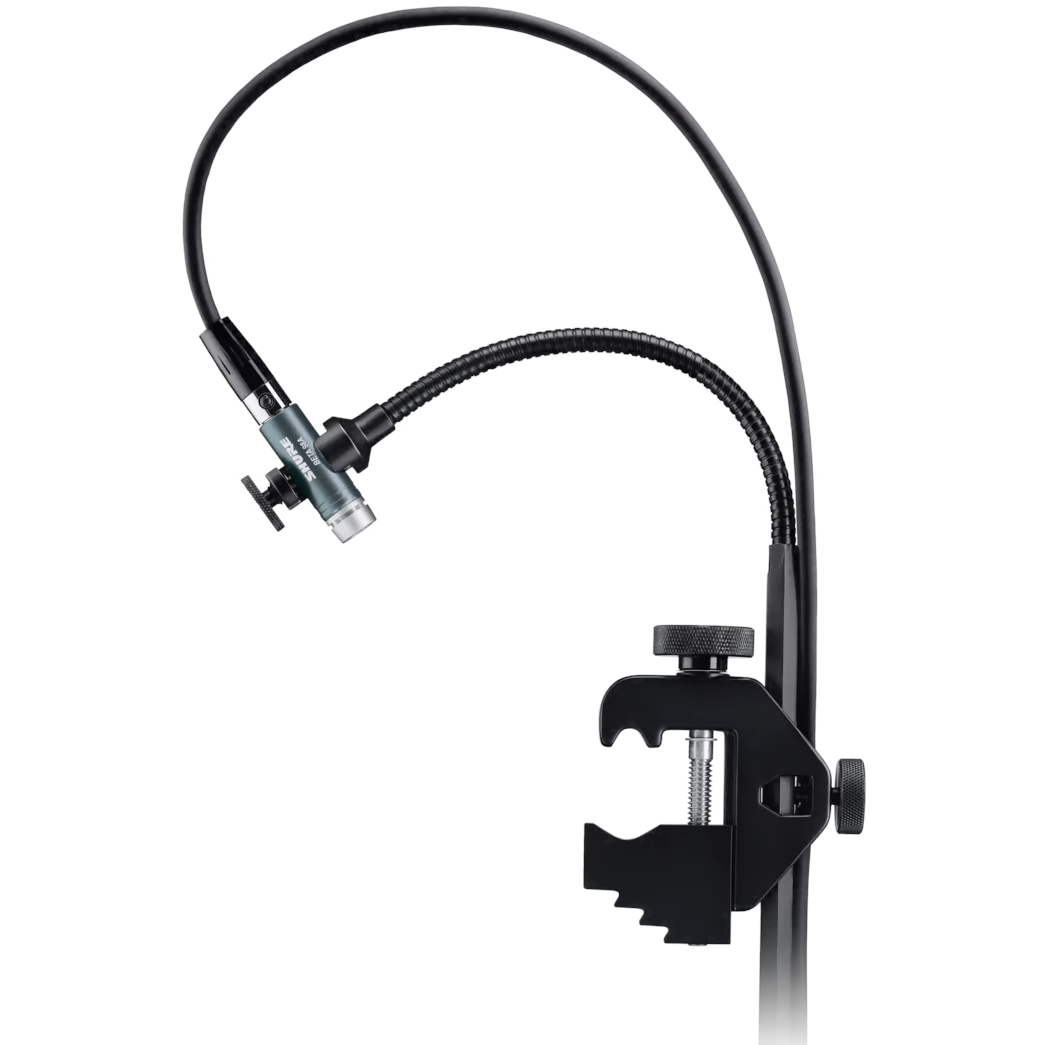

    The Shure Beta 98AD/C features high sound pressure level capability (SPL).It includes an A98D drum mount with flexible gooseneck that makes it an essential, accurate choice for toms, snares, and percussion.

    Shure Beta 98AD/C Drum Microphone Specs

    Electret Condenser

    Frequency Response
    20 to 20,000 Hz

    Polar Pattern

    Output Impedance
    179 Ohms

    Sensitivity (at 1 kHz, open circuit voltage)
    ™ 48.0 dBV/Pa (4.0 mV)

    Maximum SPL (1 kHz at 1% THD)
    1000 Ohm load: 144 dB

    Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz)
    64 dB
    S/N ratio is difference between 94 dB SPL and equivalent SPL of self noise, A-weighted

    Dynamic Range (at 1 kHz)
    1000 Ohm load: 114 dB

    Common Mode Rejection (20 Hz to 20 kHz)
    > 50 dB

    Clipping Level (1 kHz at 0.25% THD)
    1000 Ohm load: 1.0 dBV (1.26 V)
    THD of microphone preamplifier when applied input signal is equivalent to cartridge output at specified SPL

    Self-Noise (typical, equivalent SPL, A-weighted)
    30 dB SPL

    Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

    Net: 12 g (0.6 oz.)

    Three-pin professional audio (XLR), male, balanced

    Power Requirements
    11-52 Vdc phantom, 3.6 mA
