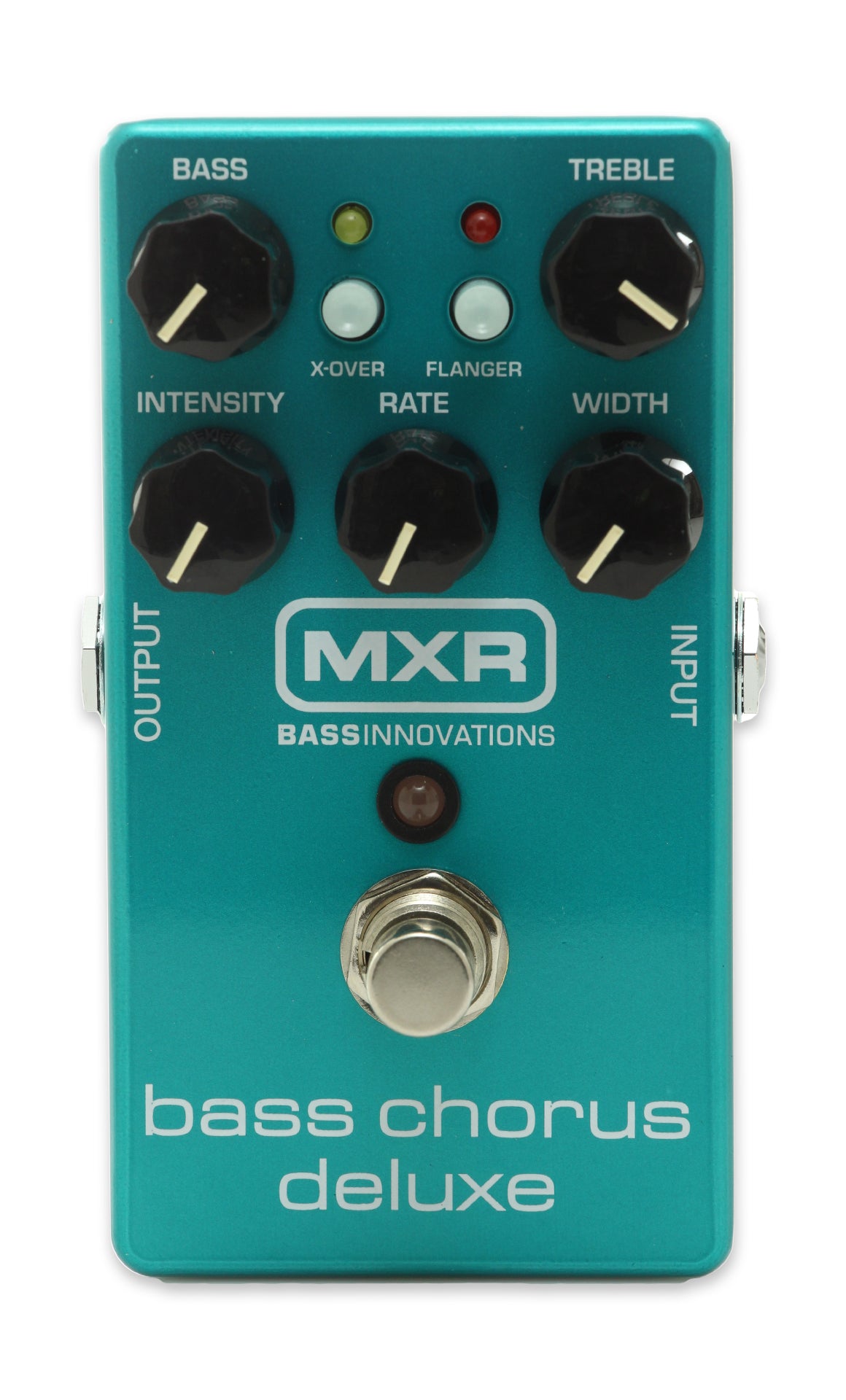

MXR M83 Bass Chorus Deluxe Bass Pedal

Special Order Item
Please Allow Extra Time For Delivery

    Expand your Tonal Palette with the MXR M83 Bass Chorus Deluxe Bass Pedal

    The MXR Bass Chorus Deluxe is powered by pure analog bucket-brigade technology, serving up shimmering, liquid chorus and swooshing, metallic flanger effects while preserving the punch and fundamental of your low end.

    The MXR Bass Chorus Deluxe features top-mounted Flanger and X-Over buttons with LED status indicators. In X-Over Mode, modulation in low frequencies is decreased at 100Hz—perfect for playing upper register chords, melodies and fills while keeping the low end in tune. With Bass and Treble controls you can cut or boost lows and highs and shape the tonal character of the effect. For a wide stereo sound, select the TRS (tip-ring-sleeve) Stereo Hardwire Bypass Mode via an internal switch. In this mode, you can use a TRS to TS (tip-sleeve) Y-splitter cable to send the effect signal to two different amplifiers, allowing the modulation to move from left to right.

    Features/Controls

    • Chorus and Flanger modes
    • Analog bucket brigade technology
    • Separate Bass and Treble controls for detailed tone sculpting
    • X-OVER mode for increased low end clarity
    • Constant Headroom Technology
    • BASS: controls how much low end is cut or boosted
    • X-OVER switch engages X-Over mode, which decreases the amount of modulation at 100Hz and below (indicated by yellow LED)
    • FLANGER switch activates Flanger mode (indicated by red LED)
    • TREBLE: controls how much high end is cut or boosted
    • INTENSITY: controls the overall amount of modulation in Chorus mode and regeneration in Flaner mode.
    • RATE: controls the speed of the modulation sweep
    • WIDTH: controls the range of the modulation sweep
    • FOOTSWITCH toggles effect on/bypass (indicated by red LED)

    Specs

    • Input Impedance: 2 MegaOhm
    • Output Impedance: TIP (Mono) 600 Ω, RING (Stereo) 3.3 KΩ
    • Max Input Level* 1 kHz/+10 dBV
    • Max Output Level +13 dBV
    • Frequency Response: 20 Hz to 20 kHz/±1 dB
    • Signal to Noise Ratio* >96 dBV
    • Tone Controls (Delay Signal Only): +8 dB, -11 dB, 100 Hz (BASS), -2 dB, 100 Hz (Center Position BASS), +/- 14 dB, 10 kHz (TREBLE)
    • X-OVER Control: +7.5 dB, 20 Hz/+3 dB, 100 Hz (Dry Signal), -18 dB, 20 Hz/-3 dB, 160 Hz (Delay Signal), Rate Control 0.1 Hz to 10 Hz
    • Maximum Delay Time: 12 ms
    • Minimum Delay Time: 400 microseconds
    • Delay Noise Reduction: 2:1 ratio
    • Bypass: Mono True Hardwire, Stereo Hardwired
    • Current Draw: 30 mA
    • Power Supply: 9 volts DC
