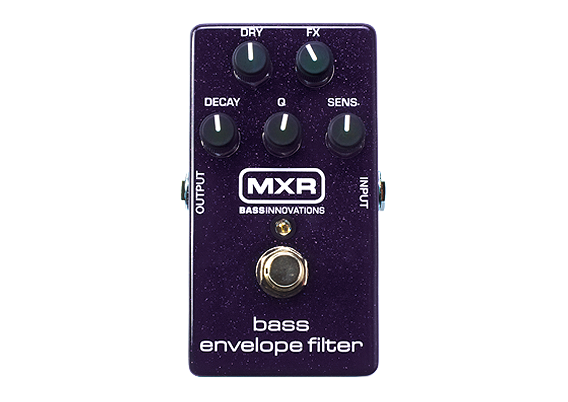

MXR M82 Bass Envelope Filter Guitar Effect Pedal

Special Order Item
Please Allow Extra Time For Delivery

    Get Classic, Analog, Envelope Filter Sounds In An Easy-To-Use And Compact Pedal Designed Specifically For Bass - The MXR M82 Bass Envelope Filter Guitar Effect Pedal

    Separate Dry and Effect controls let you dial in the perfect mix of effected and direct signals, so you can bring the funk without losing the low end. Its wide range of filter tones can be shaped with the Decay and Q controls, and a simple twist of the Sensitivity knob can tailor the pedal for your attack-as well as adjust for passive or active basses. The Bass Envelope Filter's power supply circuitry is designed to withstand over-voltage or polarity mishaps, and its true-bypass switching preserves your tone in bypass mode. It's all packaged in a durable, lightweight, Phase 90-size aluminum housing for the ultimate in portability and pedalboard space-saving dimensions.

    Features

    • Classic envelope filter sounds
    • All-analog circuitry for rich, organic tone
    • Separate DRY and FX level controls for preserving low end
    • True bypass

    Specs

    • Input Impedance: 1 Megaohm
    • Output Impedance: 100 Ohms
    • Max Input Level: -15 dBV
    • Max Output Level: +8 dBV
    • Noise Floor: -94 dBV
    • Filter Sweep: (fc) 76 Hz to 3.2 kHz
    • Sensitivity Range: 46 dB
    • Max Sensitivity at 500 Hz
    • fc = 3.2 kHz -23 dBV
    • fc = 100 kHz -39 dBV
    • Decay Stop Freq. 76 Hz to 1.3 kHz
    • Filter Gain at fc: Q Min, fc = 76 Hz +8 dB, Q Max, fc = 76 Hz +18 dB, Q Min, fc = 3.2 kHz +8 dB, Q Max, fc = 3.2 kHz +26 dB
    • FX Range: -infinty to 0 dB
    • Dry Range -infinity to +6 dB
    • Bypass: True Hardwire
    • Current Draw: 6 mA
    • Power Supply: 9 volts DC
