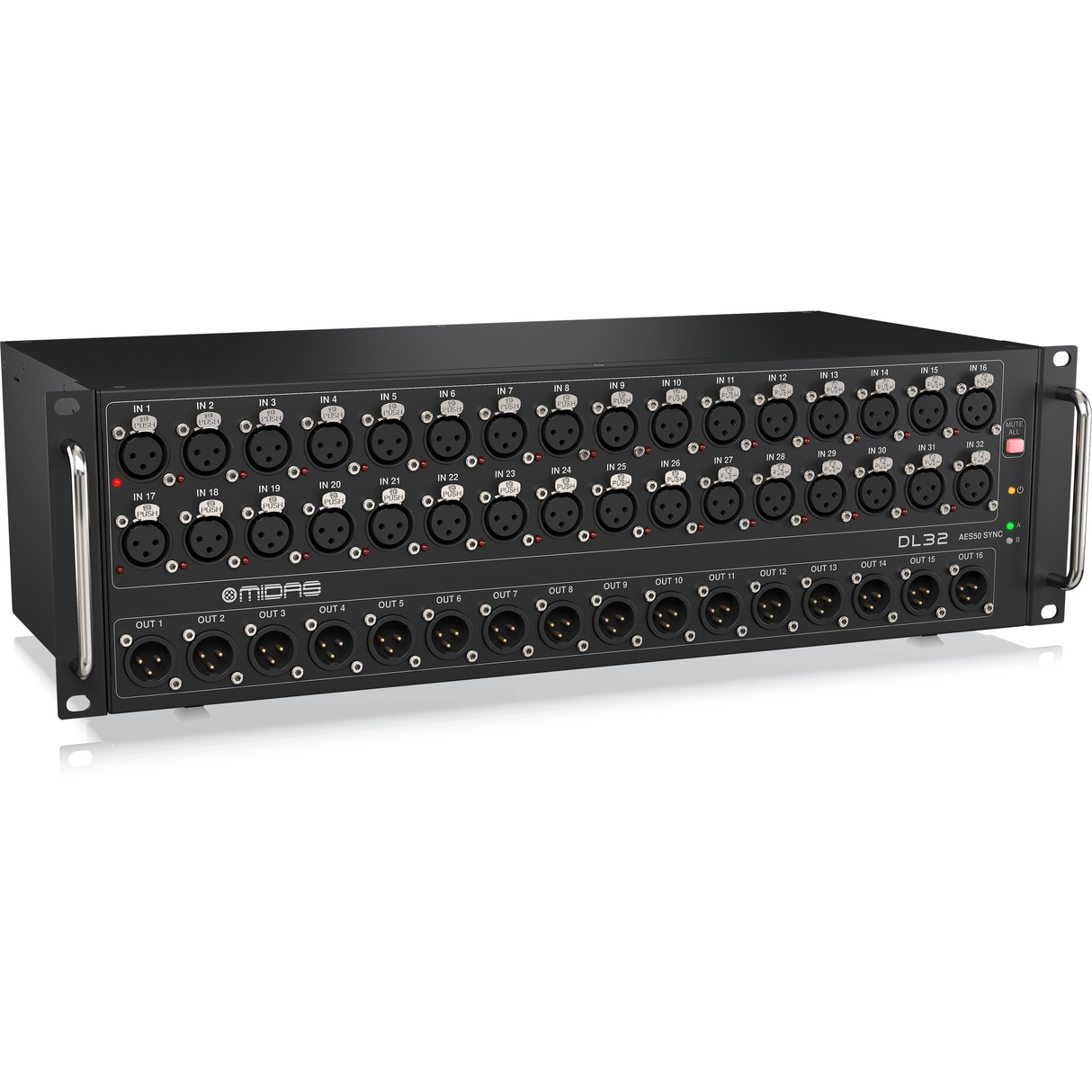

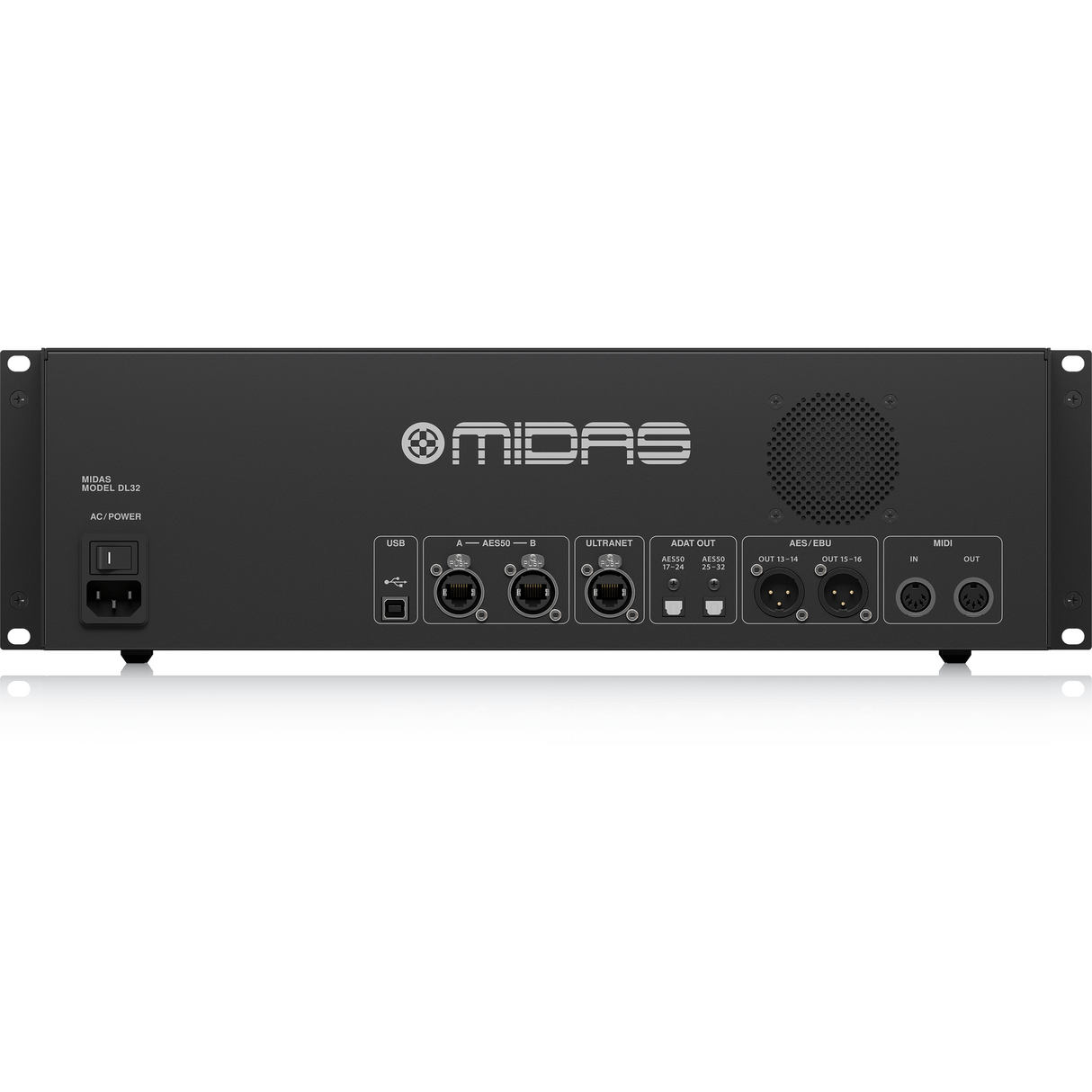

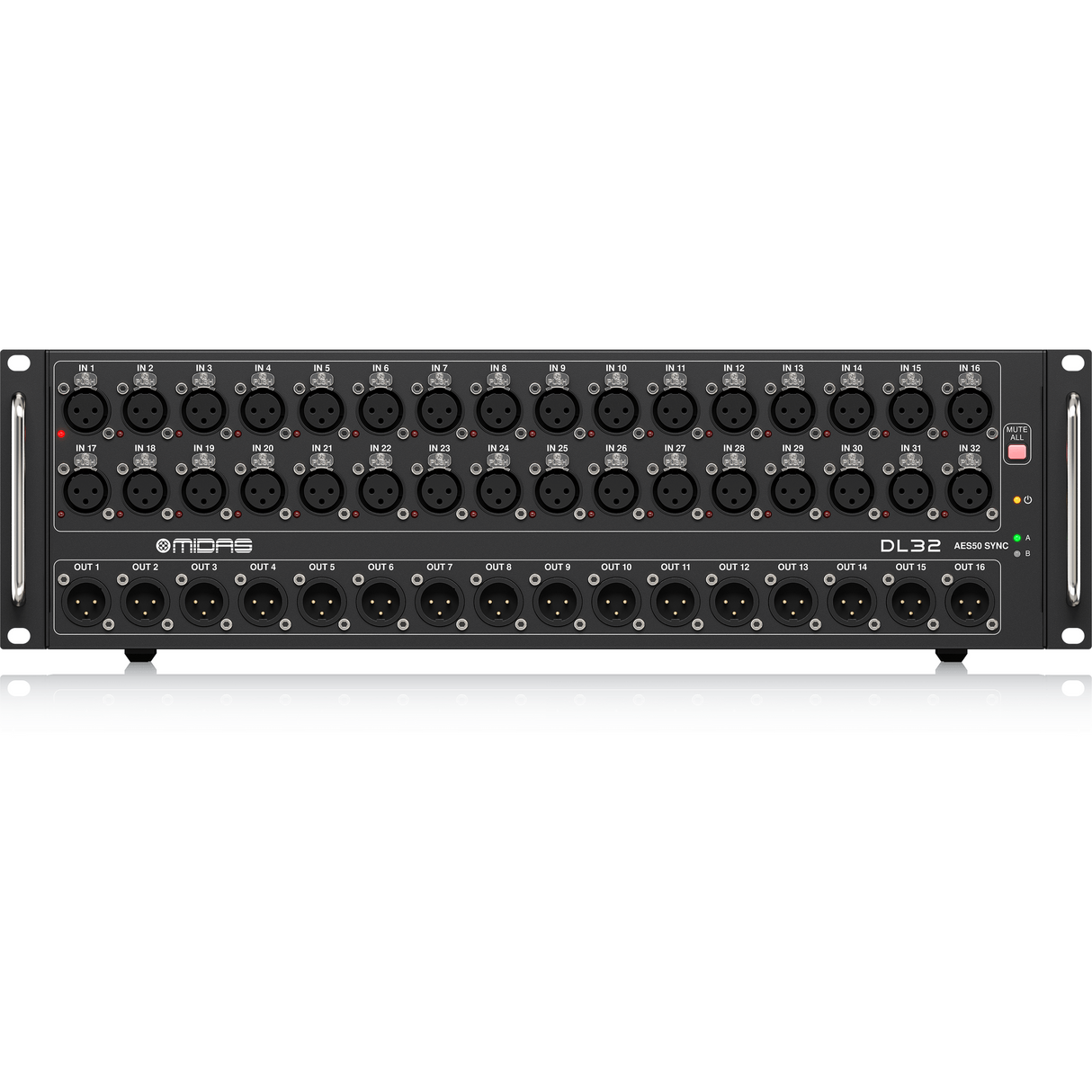

Midas DL32 32-Input/16-Output Stage Box with 32 Microphone Preamps



0% Affirm financing available. Learn more.

    Bring Your Live Mix Together With The Midas DL32 32-Input/16-Output Stage Box with 32 Microphone Preamps

    Digital mixing has revolutionized virtually everything in the live-entertainment production workflow. The DL32 is the perfect solution for connecting the onstage talent with your Front of House (FOH) console, and the rest of the world - the I/O packed and highly affordable DL32 digital stage box.

    The DL32 provides 32 MIDAS PRO Series remote-controllable mic preamps, plus 16 balanced analog XLR returns at the stage end - and all it takes is a single Cat 5e cable (up to 100 m / 328'). While KLARK TEKNIK, the industry-leader in high-end digital audio processing, invented the AES50 SuperMAC technology that made it all possible - our superb scale of production makes the DL32 so very affordable.

    Features

    • 32 award-winning Midas PRO microphone preamplifiers with switchable 48 V phantom power
    • 16 electronically balanced low impedance line level outputs
    • ULTRANET personal monitoring system connectivity for in-ear applications
    • Digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability
    • Dual AES50 SuperMAC ports for cascading additional DL16 stageboxes—no merger or router required
    • Automatic AES50 stage-split mode when connected between Midas M32 Series FOH and monitor consoles
    • Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK connectors
    • 2 AES-3 ports (AES/EBU), for directly connecting PA system controllers with digital inputs
    • Remote operation via shielded CAT5e cable up to 330 ft / 100 m length
    • Mute All function for quietly patching any inputs on stage
    • MIDI In/Out for bidirectional communication between Midas M32 Series console and on-stage MIDI devices
    • Features Neutrik etherCON AES50 and ULTRANET network ports
    • Rugged 3U rackmount chassis for durability in portable applications
    • Auto-ranging universal switch-mode power supply
    • Designed and engineered in the U.K.
