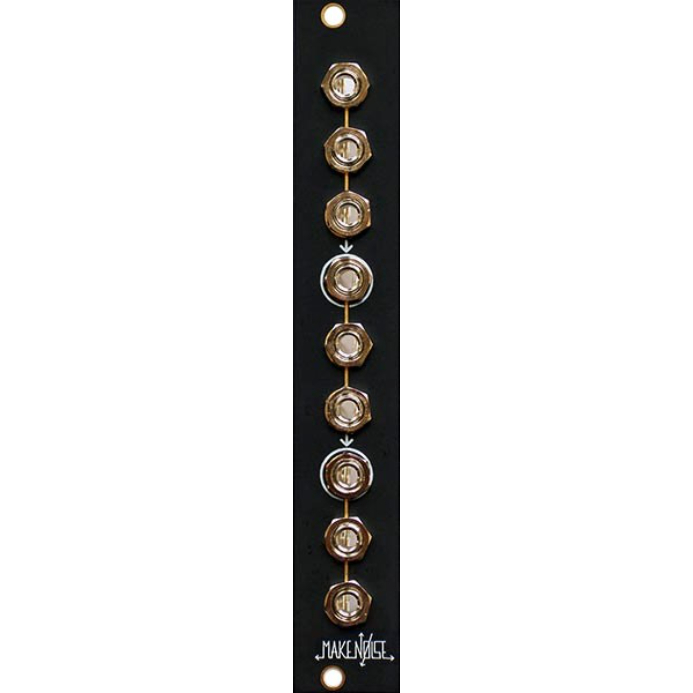

Make Noise MULT Configurable Passive Multiple Module

    Route Signal However and Wherever With The Make Noise MULT Configurable Passive Multiple Module

    The Multiple is a simple but important module that allows for sending a signal to multiple destinations. Within the Make Noise system the Multiple may also be used for combining clock, gate and pulse signals together to create interesting timing sources (in other words, it acts as a Gate combiner aka logic OR circuit). It has 9 inter-connected sockets that may be split into different group combinations depending upon how it is patched. The jacks circled in white will make or break the interconnects between the 3 groups of three, thus allowing for three 3-way, one 5-way/ one 3-way or one 7-way multiple. The Multiple is passive, because the Make Noise system does not require Buffered Multiples since all critical control signals are already buffered in such a way as to provide a large fan-out capability.
