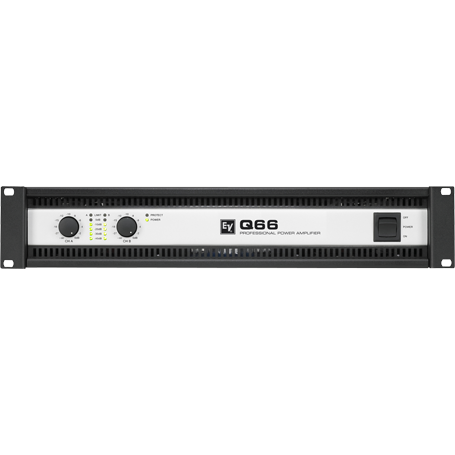

Electro-Voice Q66-II 120V Q Series 900W per Channel Power Amplifier

    Building on a legacy of power and performance, Q Series amps take Electro-Voice’s unique amplifier philosophy to a new level of efficiency and value. The Q series achieves superb audio performance because it's designed for superior dynamic headroom and transient response, resulting in 30% greater output capability for short-duration signals. High-power Q99 & Q1212 models use sophisticated Class-H topology that dramatically reduces heat and cuts energy consumption by up to 50%, yielding racks that are easier to power and easier to cool. Smaller Q44 & Q66 models are based on the proven Class-AB designs of EV’s reference-standard P series. All models incorporate dynamic limiting to prevent dangerous output clipping, as well as extensive protections against thermal damage and electrical malfunction. Combining Class-H innovation with Class-AB sonic excellence and robustness, the compact, affordable Q series is the ideal amplifier line for all sizes of clubs, concerts, performance centers, and sports venues.

    Amplifier Gain: 32 dB
    Continuous Rated Power (1 kHz, THD 1%): 2 900 Watts
    Continuous Rated Power (1 kHz, THD 1%): 4 600 Watts
    Continuous Rated Power (1 kHz, THD 1%): 8 380 Watts
    Continuous Rated Power (20-20 kHz, THD<0,2%): 4 500 Watts
    Continuous Rated Power (20-20 kHz, THD<0,2%): 8 250 Watts
    Cooling: Front-to-Rear, 3-stage fans
    DIM 30: 0.05 %
    Frequency Response: 10 Hz - 40 kHz ±1 dB
    Impedance: 2/4/8
    Input Impedance (Balanced): 20 k
    Input Sensitivity: +3.1 dBu
    Intermodulation Distortion (SMPTE): 0.1 %
    Maximum Bridged Output 4 : 1800 Watts
    Maximum Bridged Output 8 : 1200 Watts
    Maximum Input Voltage: +21 dBu 8.69 Vrms
    Network Control (IRIS-Net): No
    Signal-to-Noise Ratio (A-weighted): 107 dB
    Slew Rate: 26 V/µs
    Topology: Class-AB
    Total Harmonic Distortion: 0.03 %
    Height: 2RU 88.1 mm (3.47")
    Width: 483 mm (19.02")
    Depth: 421.5 mm (16.59")
    Weight Net: 14.8 kg (32.63 lbs)
