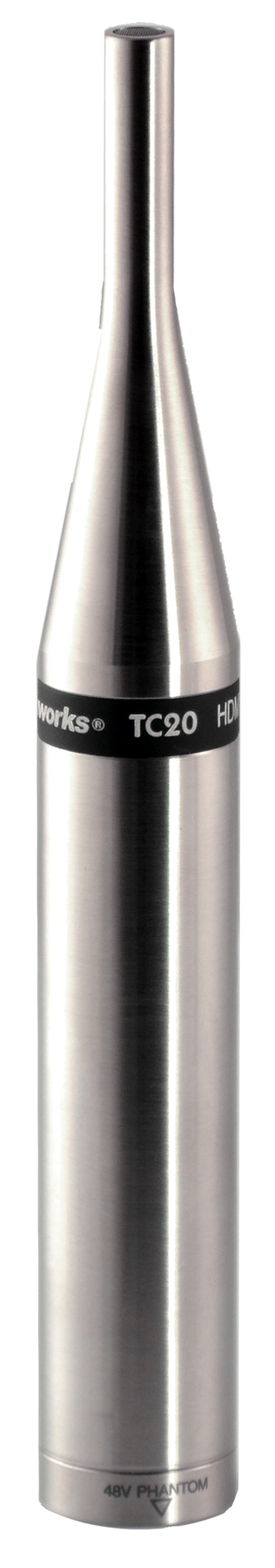

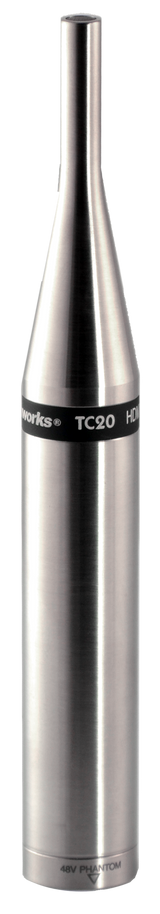

Earthworks TC20 Time Coherent Series 20kHz Omni Mic for Loud Sources

    The TC Series (Time Coherent) is designed for recording louder sources such as drums, percussion, amplified instruments and loud sound effects. Microphones in this series allow recording of louder acoustic sources without overloading the preamplifier. Models in the TC Series are often the choice for recording drum overheads, close miked or amplified instruments and sound effects.

    Frequency Response: 10Hz to 20kHz ±1/-3dB

    Polar Pattern: Omnidirectional

    Sensitivity: 8mV/Pa (-42dBV/Pa)

    Power Requirements: 48V Phantom, 10mA

    Max Acoustic Input: 150dB SPL

    Output: XLR (pin 2+)

    Output Impedance: 100 , balanced (50 ea. pin 2 & 3)

    Min Output Load: 600 between pins 2 & 3

    Noise: 27dB SPL equivalent (A weighted)

    Dimensions L x D: 165mm x 22mm (6.5 x .860 inches)

    Weight: .35 lb. (160g)
