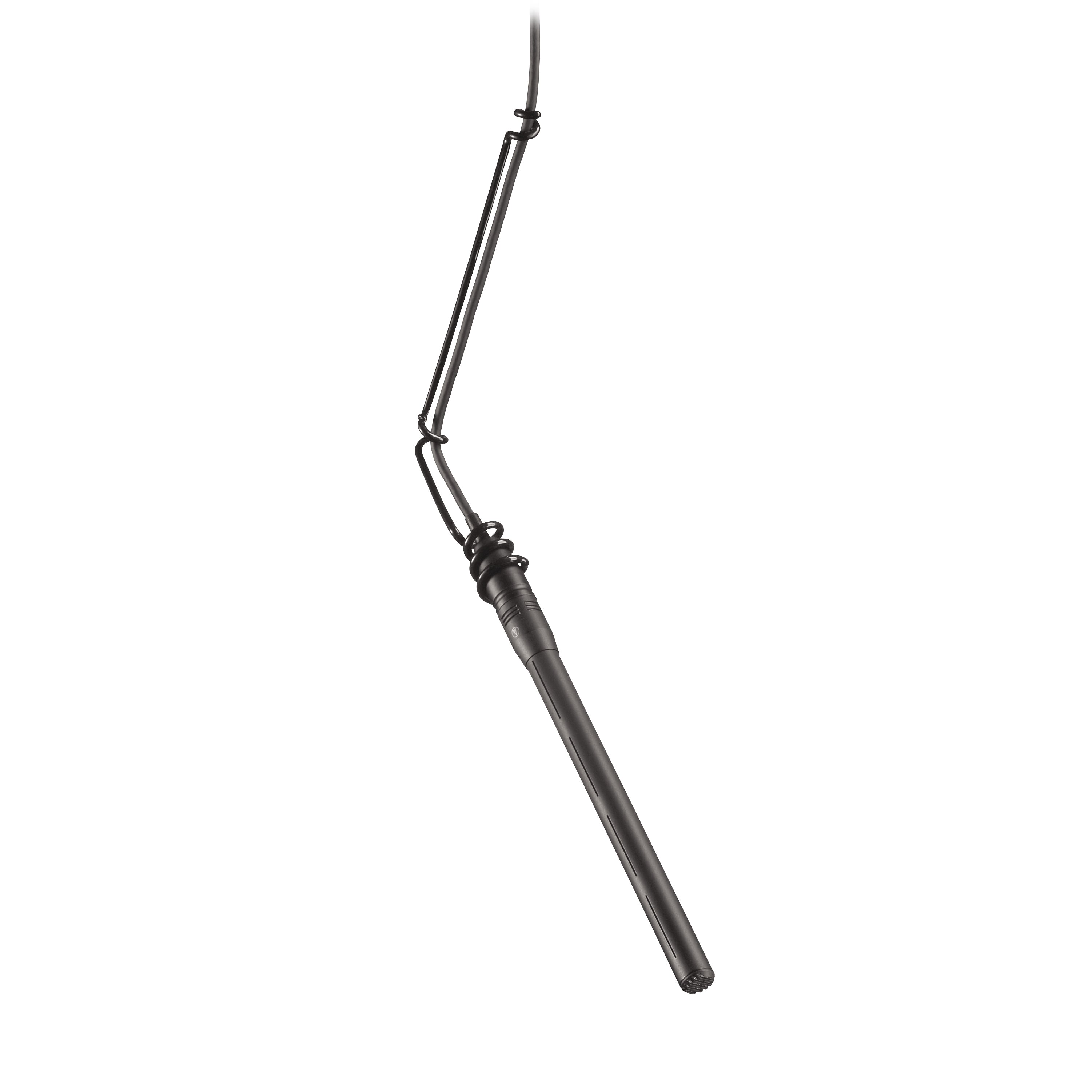

Audio-Technica U853AU UniPoint Series UniLine Hanging Microphone

    Equipped with Audio-Technica’s UniLine® line-cardioid element with a tightly focused 90° acceptance angle, the U853AU features UniGuard® innovations that offer unsurpassed immunity from radio frequency interference. The battery- or phantom-powered microphone accepts interchangeable elements, available in cardioid, hypercardioid, omnidirectional and UniLine® line cardioid polar patterns. It also offers an 80 Hz low-cut UniSteep® filter that reduces pickup of low-frequency ambient noise. ELEMENT Fixed-charge back plate, permanently polarized condenser
    POLAR PATTERN Line Cardioid
    FREQUENCY RESPONSE 30-20,000 Hz
    LOW FREQUENCY ROLL-OFF 80 Hz, 18 dB/octave
    OPEN CIRCUIT SENSITIVITY Phantom: –38 dB (12.5 mV) re 1V at 1 Pa
    Battery: –39 dB (11.2 mV) re 1V at 1 Pa
    IMPEDANCE Phantom: 200 ohms
    Battery: 270 ohms
    MAXIMUM INPUT SOUND LEVEL Phantom: 130 dB, 1 kHz at 1% T.H.D.
    Battery: 120 dB SPL, 1 kHz at 1% T.H.D.
    DYNAMIC RANGE (typical) Phantom: 110 dB, 1 kHz at Max SPL
    Battery: 100 dB, 1 kHz at Max SPL
    SIGNAL-TO-NOISE RATIO 74 dB, 1 kHz at 1 Pa
    PHANTOM POWER REQUIREMENTS 11-52V DC, 2 mA typical
    BATTERY TYPE 1.5V AA/UM3
    BATTERY CURRENT / LIFE 0.4 mA / 1200 hours typical (alkaline)
    SWITCH Off, on-flat, on-roll-off
    WEIGHT (MICROPHONE) 1.1 oz (30 g)
    WEIGHT (POWER MODULE) 4.9 oz (139 g)
    DIMENSIONS (MICROPHONE) 6.14" (156.0 mm) long,
    0.48" (12.2 mm) diameter
    DIMENSIONS (POWER MODULE) 3.31" (84.0 mm) H x
    2.48" (63.0 mm) W x
    0.87" (22.0 mm) D
    OUTPUT CONNECTOR (POWER MODULE) Integral 3-pin XLRM-type
    CABLE 25.0' (7.6 m) long (permanently attached to microphone), 0.13" (3.2 mm) diameter, 2-conductor, shielded cable with TA3F-type connector
    OPTIONAL INTERCHANGEABLE ELEMENTS UE-C cardioid (120°);
    UE-H hypercardioid (100°);
    UE-O omnidirectional (360°)
    ACCESSORIES FURNISHED AT8154 two-stage foam windscreen; AT8451 steel hanger; AT8531 power module; AT8438 5/8"-27 stand adapter; battery
