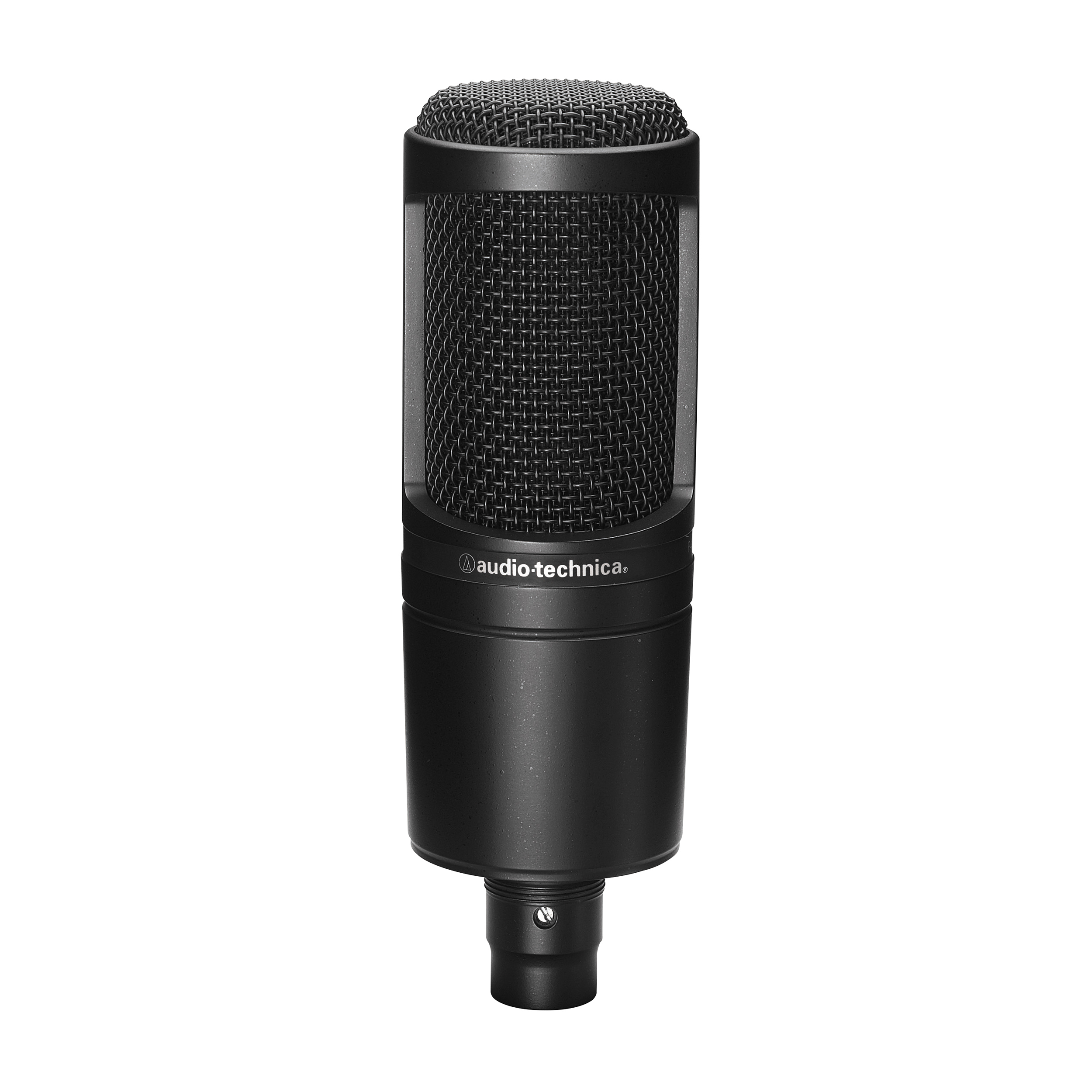

Audio-Technica AT2020 Side-Address Cardioid Condenser Microphone

    Audio-Technica’s stringent quality and consistency standards set the AT2020 apart from other mics in its class. Its low-mass diaphragm is custom-engineered for extended frequency response and superior transient response. With rugged construction for durable performance, the microphone offers a wide dynamic range and handles high SPLs with ease. The Audio-Technica AT2020: the new standard for affordable side-address studio condensers.

    ELEMENT: Fixed-charge back plate, permanently polarized condenser

    POLAR PATTERN: Cardioid

    FREQUENCY RESPONSE: 20-20,000 Hz

    OPEN CIRCUIT SENSITIVITY: –37 dB (14.1 mV) re 1V at 1 Pa

    IMPEDANCE: 100 ohms

    MAXIMUM INPUT SOUND LEVEL: 144 dB SPL, 1 kHz at 1% T.H.D.

    NOISE: 20 dB SPL

    DYNAMIC RANGE (typical): 124 dB, 1 kHz at Max SPL

    SIGNAL-TO-NOISE RATIO: 74 dB, 1 kHz at 1 Pa


    WEIGHT: 12.1 oz (345 g)

    DIMENSIONS: 6.38" (162.0 mm) long,
    2.05" (52.0 mm) maximum body diameter

    OUTPUT CONNECTOR: Integral 3-pin XLRM-type

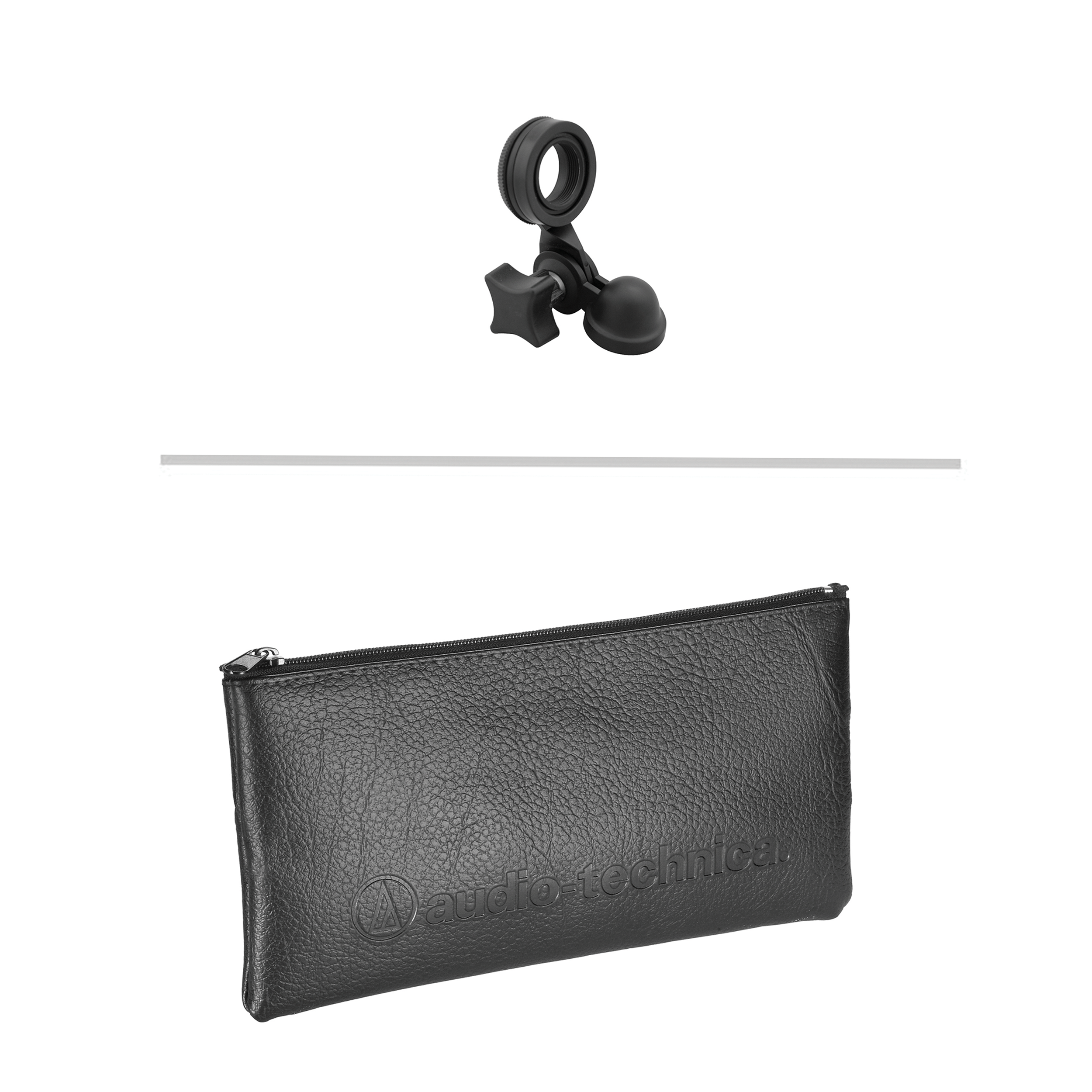

    Audio-Technica AT2020 ACCESSORIES FURNISHED: Stand mount for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
