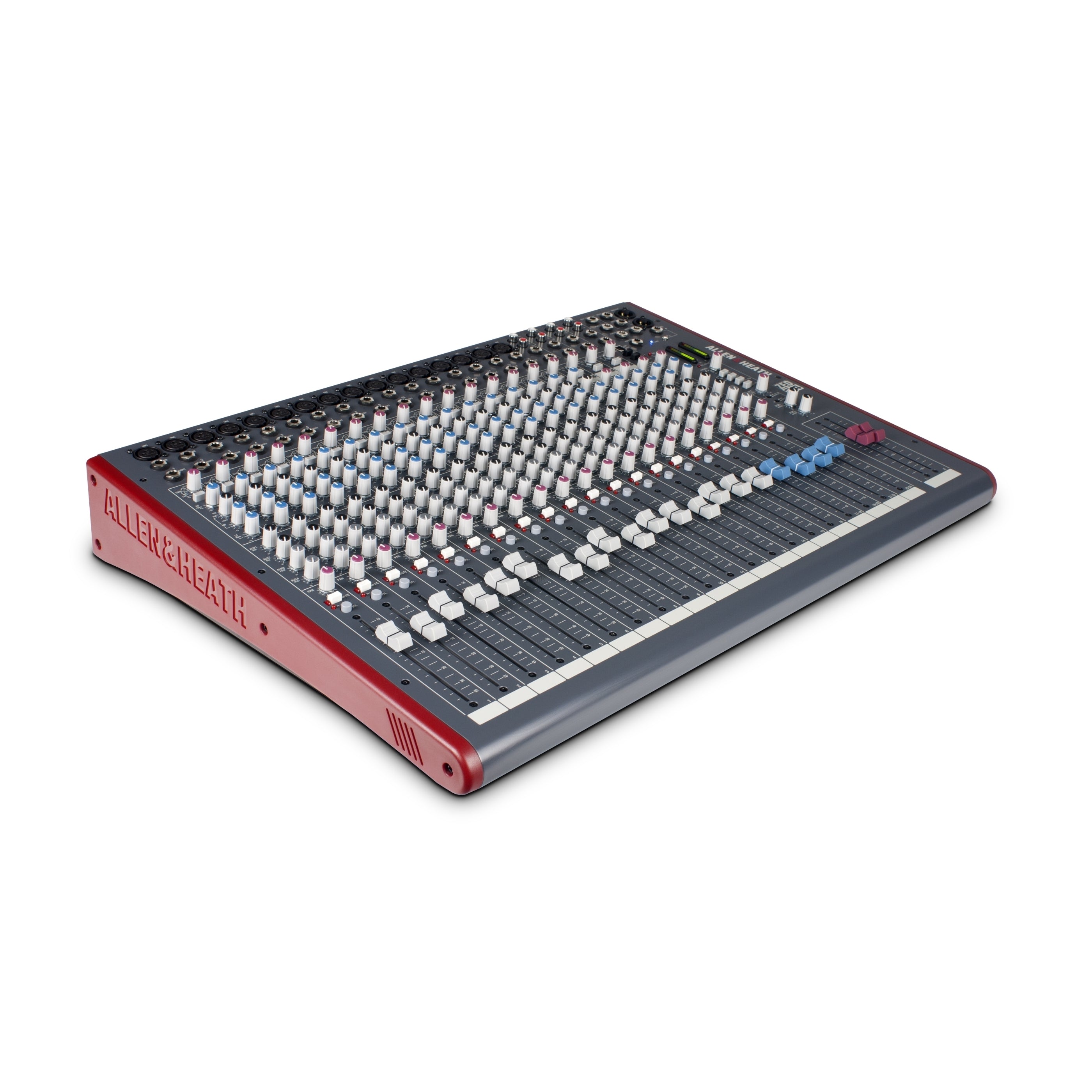

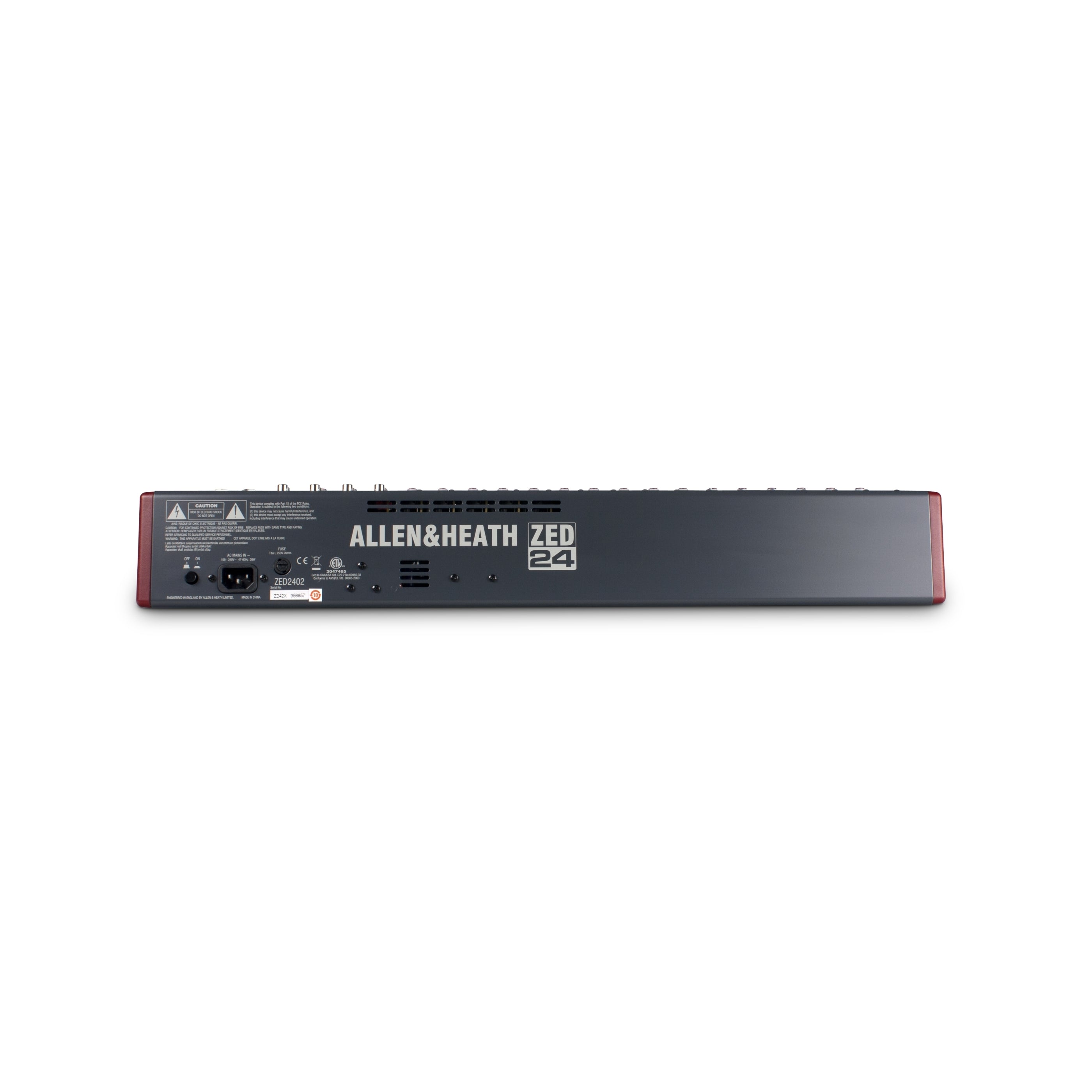

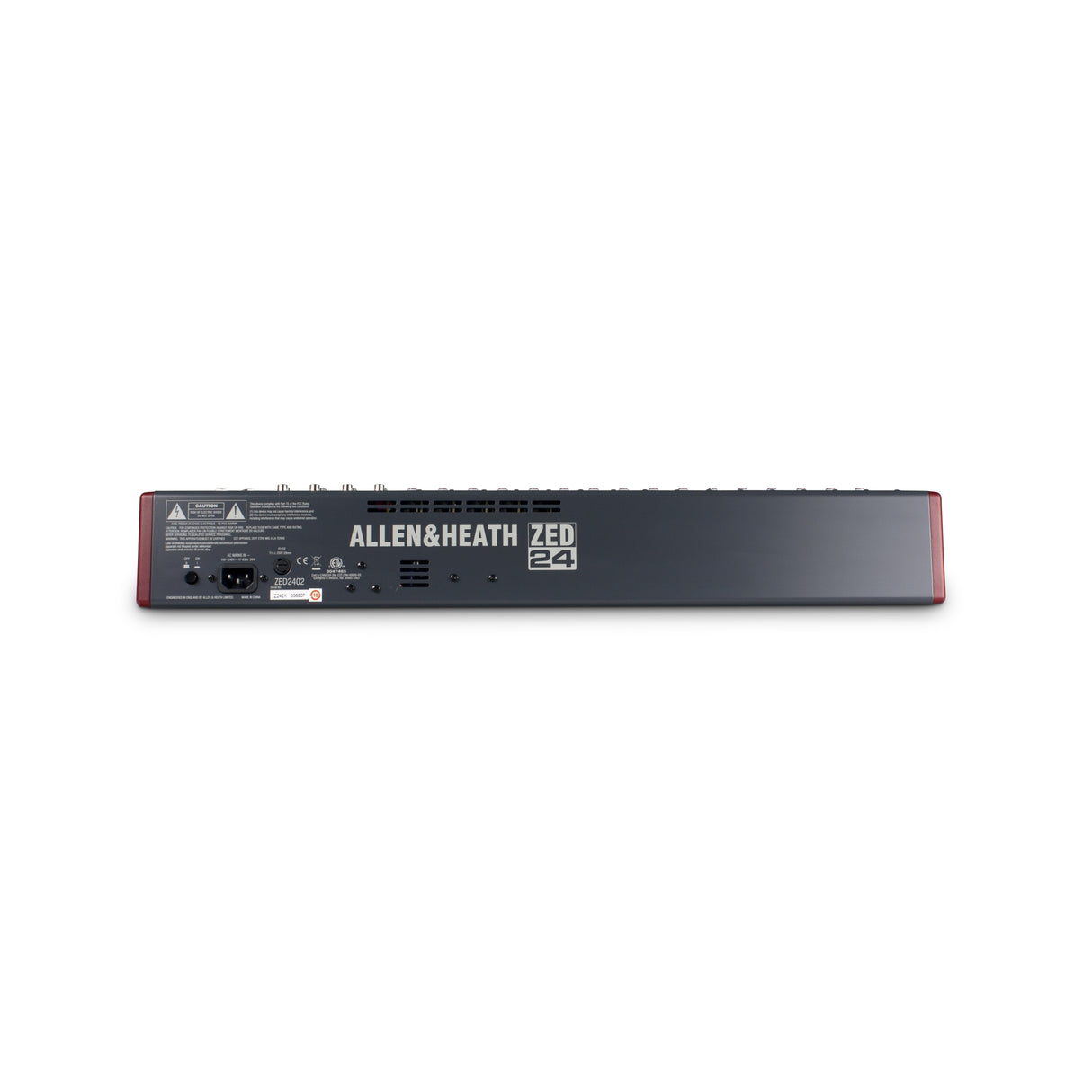

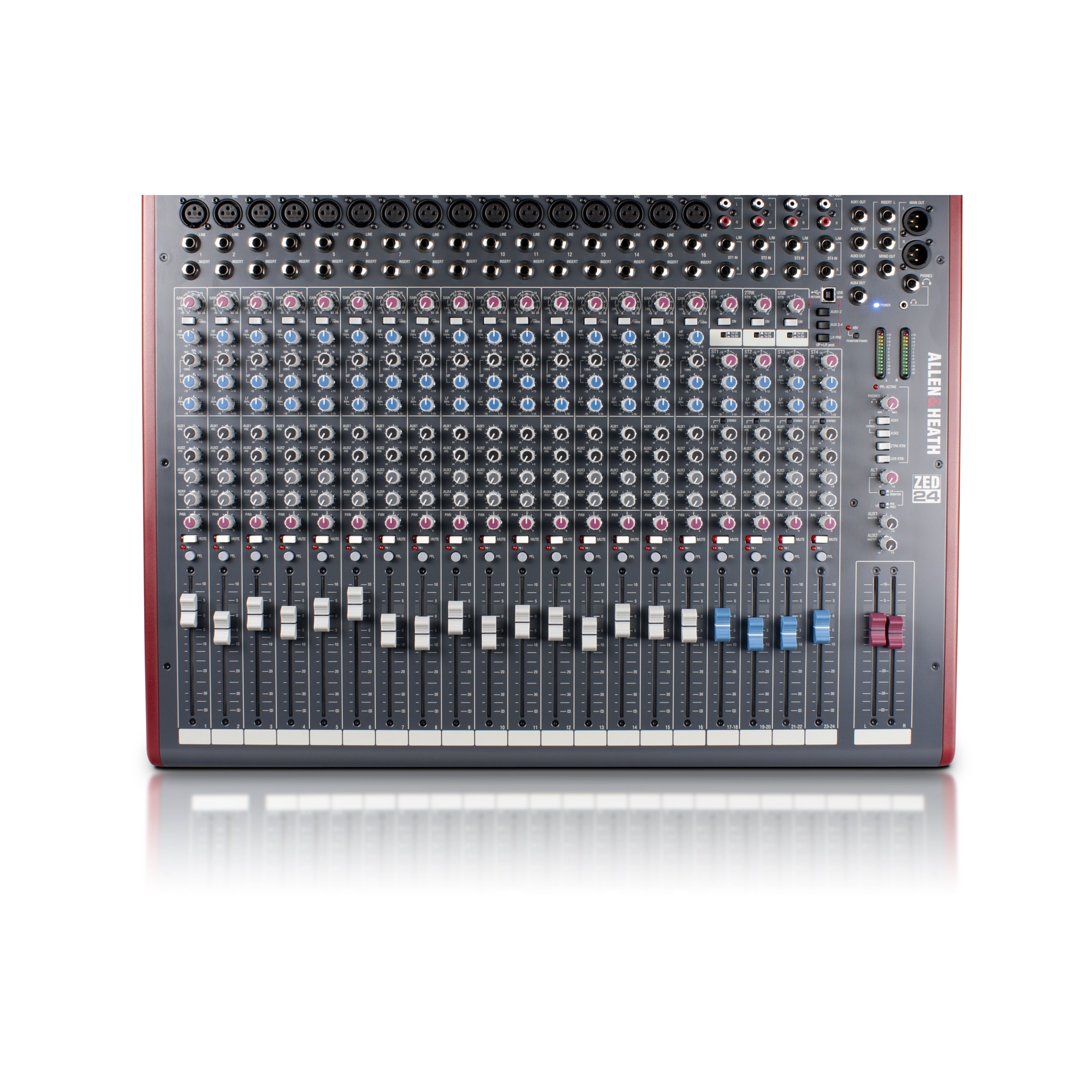

Allen & Heath ZED-24 Mixer With USB

    Capture Remarkable Recordings With Advanced features With The Allen & Heath ZED-24 Mixer With USB

    Allen & Heath ZED-24 has an incredibly advanced feature-set for a mixer at this level – it has 23 independent sources to the mix, 10 independent outputs, 4 aux sends, Configurable USB audio in/out makes it easy to capture stereo recordings, playback and effects, a unique dual stereo input capability and some very advanced monitoring facilities. In fact, Allen & Heath ZED-24 is so packed full of great features that you’d think it would cost much, much more!


    Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on Allen & Heath ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your Allen & Heath ZED, select the USB routing on the mixer and the device on your computer and that's it! CD quality audio to and from your PC or Mac. Switches and connection through jack socket terminals provide different send/return configurations:-

    1) Main Mix Left + Right (Post-fade)
    2) Main Mix Left + Right (Pre-Fade)
    3) Auxes 1-2
    4) Auxes 3-FX

    1) To Stereo 3 channel


    Allen & Heath ZED-22FX features a responsive 3-band, swept mid frequency EQ design which utilises MusiQ – with optimised slope (or Q factor) for equalising individual instruments.


    Based on the proven pre-amps from the hugely successful PA series, Allen & Heath ZED-22FX has DuoPre pre-amps, which use a two stage design, with carefully controlled amounts of gain in each stage. When amplifying the signal from the XLR input, the gain range is huge - 69dB of range to be exact - and is very evenly distributed around the gain control, meaning better control of signal level. Most of the gain comes from the first stage, so unwanted noise is kept to a minimum. Line level signals are simply plugged into the second stage of the pre-amp by using the line input jack socket, which has the great advantage of less noise when using the line input and also matching to a higher input impedance. SONAR X1 LE – Provided Free!

    We’ve included Cakewalk SONAR X1 LE with Allen & Heath ZED-22FX so you can immediately start to use it to create your own music – just add a PC and it couldn’t be easier to get going. You’ll be able to record from your Allen & Heath ZED mixer, create tracks and arrange songs, then play back to Allen & Heath ZED via the USB port. You can use SONAR X1 LE and your Allen & Heath ZED mixer together in many ways – e.g. straightforward recording of a stereo mix, recording tracks individually to build up a song, or using the USB port and software as an effects loop.
